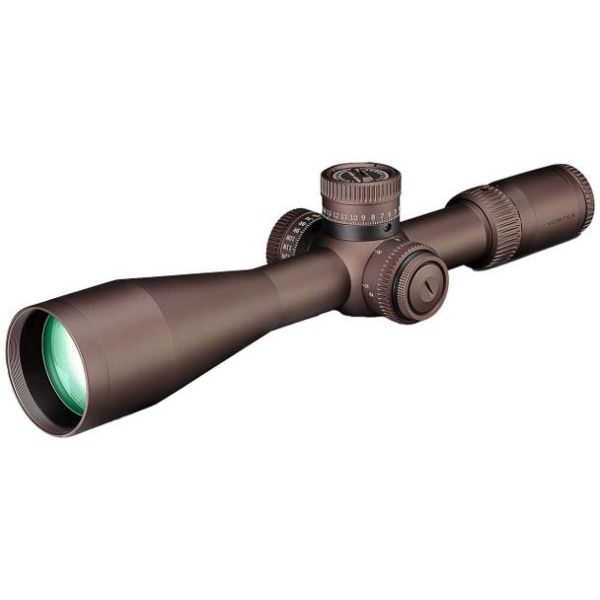

Built around the perfect balance of magnification and field of view, the Razor Gen III 6- 36x56 FFP delivers the resolution and contrast you need for long-range, tactical shooting. To get the absolute most out of the first focal plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. Round it out with a rugged build and you have the long-range, tactical solution youve been waiting for.
EBR-7D Reticle
Packed with useful subtension data for long-range shooting , the EBR-7D is a hashmarked, ranging reticle available in the first focal plane. A windage tree in the lower two quadrants is perfect for fast follow-up corrections for both wind and elevation. The cross-plex illumination allows for better usability at lower magnification.
| SKU | ISS3898 | ISS4927 |
| MPN | LRF-VP3000 | RZR-63602 |
| Reticle | EBR-7D (MOA) | EBR-7D (MRAD) |
| Magnification | 6-36x | 6-36x |
| Objective Lens Diameter | 56 mm | 56 mm |
| Eye Relief | 3.5 inches | 3.5 inches |
| Field of View | 20.5-3.5 ft @ 100 yds | 20.5-3.5 ft @ 100 yds |
| Tube Size | 34 mm | 34 mm |
| Turret Style | Exposed Locking | Exposed Locking |
| Adjustment Graduation | 1/4 MOA | .1 MRAD |
| Travel Per Rotation | 25 MOA | 10 MRAD |
| Max Elevation Adjustment | 120 MOA | 36.1 MRAD |
| Max Windage Adjustment | 52.5 MOA | 15.5 MRAD |
| Parallax Setting | 10 yds to infinity | 10 yds to infinity |
| Length | 15.3 inches | 15.3 inches |
| Weight | 45.1 oz | 45.1 oz |
| FEATURES |
| First Focal Plane Reticle | Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting. |
| L-Tec+ Zero System | The L-Tec+ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel. |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| Micro Adjust Zero Setting | Infinite zero setting positions allow zero to be set between clicks for optimal accuracy. |
| External Rotation Indicator | Provides quick visual and tactile reference of elevation turret's rotational position. |
| XR Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
