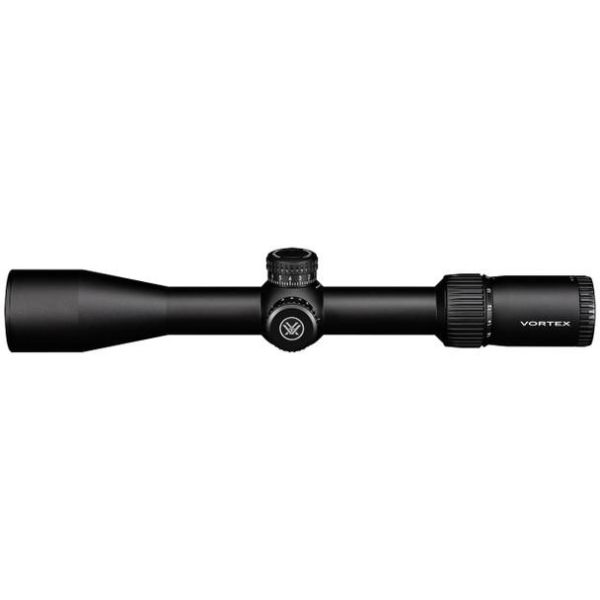

Vortex Diamondback Tactical 4-16x44 FFP Riflescope

Availability: In stock
Only 10 left
SKU
HU03406

Description

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.

EBR-2C (MOA)
Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

EBR-2C (MRAD)
Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

SKU 16785 16784
MPN DBK-10026 DBK-10027
Reticle EBR-2C (MOA) EBR-2C (MRAD)
Magnification 4-16x 4-16x
Objective Lens Diameter 44 mm 44 mm
Eye Relief 3.8 inches 3.8 inches
Field of View 26.9-6.7 ft/100 yds 26.9-6.7 ft/100 yds
Tube Size 30 mm 30 mm
Turret Style Tall Exposed Tactical Tall Exposed Tactical
Adjustment Graduation 1/4 MOA 1/4 MOA
Travel Per Rotation 15 MOA 15 MOA
Max Elevation Adjustment 85 MOA 85 MOA
Max Windage Adjustment 85 MOA 85 MOA
Parallax Setting 20 yards to infinity 20 yards to infinity
Length 14.06 inches 14.06 inches
Weight 23.1 oz 23.1 oz

OPTICAL FEATURES
XD Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
