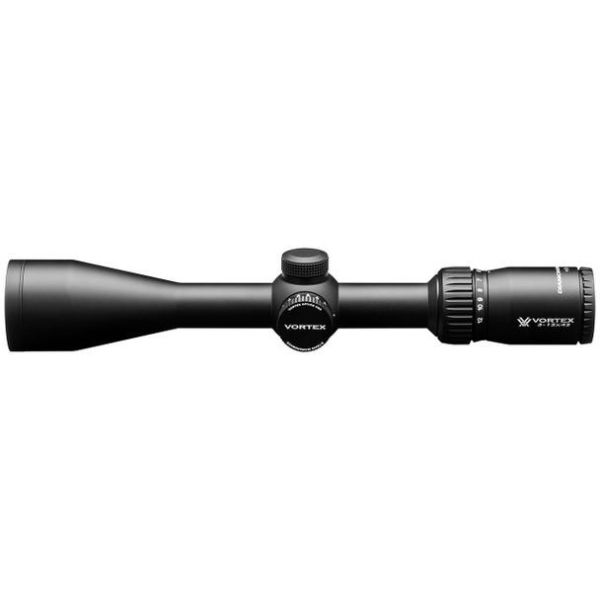

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.
Dead-Hold BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
V-Plex (MOA)
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
| SKU | I-20395 | ISS2750 |
| MPN | DBK-10015 | DBK-10017 |
| Reticle | Dead-Hold BDC (MOA) | V-Plex MOA |
| Magnification | 3-12x | 3-12x |
| Objective Lens Diameter | 42 mm | 42 mm |
| Eye Relief | 4.0 inches | 4.0 inches |
| Field of View | 28.8-8.2 ft/100 yds | 28.8-8.2 ft/100 yds |
| Tube Size | 1 inch | 1 inch |
| Turret Style | Capped | Capped |
| Adjustment Graduation | 1/4 MOA | 1/4 MOA |
| Travel Per Rotation | 15 MOA | 15 MOA |
| Max Elevation Adjustment | 90 MOA | 90 MOA |
| Max Windage Adjustment | 90 MOA | 90 MOA |
| Parallax Setting | 30 yards to infinity | 30 yards to infinity |
| Length | 12.5 inches | 12.5 inches |
| Weight | 18 oz | 18 oz |
| OPTICAL FEATURES |
| XD Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| XR Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| |
| CONSTRUCTION FEATURES |
| Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps
