Vortex Precision Extended Cantilever Mount - 34mm

Vortex Precision Extended Cantilever Mount - 34mm

Vortex Precision Matched Rings - 34mm

Vortex Precision Matched Rings - 34mm

Vortex Precision Matched Rings - 30mm

Availability: In stock
Only 10 left
SKU
HU05287

Description

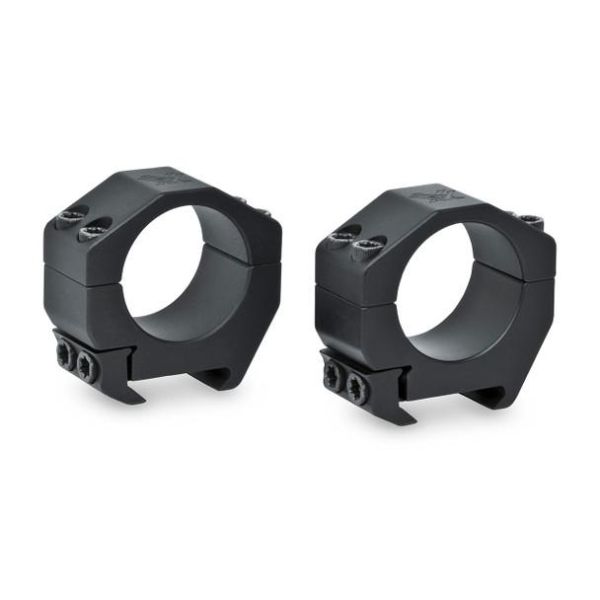

Machined with certified USA 7075 T6 billet aluminum and held to an extremely tight tolerance of .0005 inches using a precision Computer Numeric Controlled (CNC) mill. These Vortex rings are then serialized, vibratory tumbled, bead blasted and finished with a Type III hard coat anodize.

  • Rugged, lightweight, anti-snag design
  • Robust, Grade 8 fasteners
  • 100% made in USA guaranteed for life

Torque Specs
- Base Clamp Screws 45-50 in/lbs
- Ring Screws 15-18 in/lbs

SKUPMR-30-87I-20431I-20432I-20430I-20429
MPNPMR-30-87PMR-30-97PMR-30-97-WPMR-30-126PMR-30-145
Center Scope Height.87 inches (22.1 mm).97 inches (24.64 mm).97 inches (24.64 mm)1.26 inches (32 mm)1.45 inches (36.8 mm)
Weight (per ring)60 grams (2.1 oz)65 grams (2.3 oz)65 grams (2.3 oz)70 grams (2.5 oz)75 grams (2.6 oz)
Mount CompatibilityPicatinnyPicatinnyPicatinny and WeaverPicatinnyPicatinny
