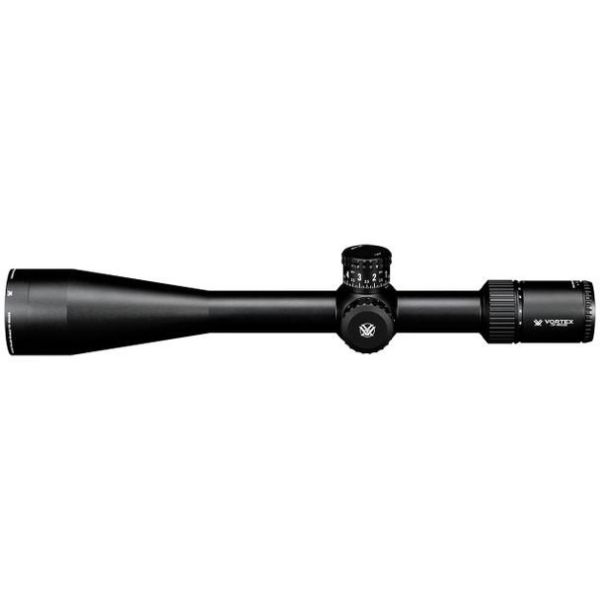

The Golden Eagle HD offers a unique set of features specifically designed for F Class and Bench Rest competition shooters. The 15-60x magnification range, ultra-precise 1/8 MOA adjustments and extremely fine, second focal plane reticle options help maximize precision on known-distance long-range targets. All these features and more are complimented by a top-tier optical system making for a super-sharp target picture down range and the ability to read mirage and other wind indicators accurately. Equally impressive, the Golden Eagle weighs in at a relatively light 29.5 ounces, helping shooters adhere to strict competition weight limits. When youre going for gold in F Class or Bench Rest, go for the Golden Eagle to top your rifle.
ECR-1 (MOA)
The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for holdover, and windage corrections. The floating center dot subtends 0.095 MOA at 40X.
SCR-1 (MOA)
The SCR-1 (Simple Crosshair Reticle) is the exact opposite of a busy reticle. The only thing that needs your attention is a traditional set of fine crosshairs that subtend 0.016 MOA at 40X.
| SKU | I-20368 | I-20369 |
| MPN | TCS-1503 | TCS-1501 |
| Reticle | ECR-1 (MOA) | SCR-1 (MOA) |
| Magnification | 15-60x | 15-60x |
| Objective Lens Diameter | 52 mm | 52 mm |
| Eye Relief | 3.9 inches | 3.9 inches |
| Field of View | 6.3-1.7 ft/100 yds | 6.3-1.7 ft/100 yds |
| Tube Size | 30 mm | 30 mm |
| Turret Style | Target | Target |
| Adjustment Graduation | 1/8 MOA | 1/8 MOA |
| Travel Per Rotation | 10 MOA | 10 MOA |
| Max Elevation Adjustment | 55 MOA | 55 MOA |
| Max Windage Adjustment | 45 MOA | 45 MOA |
| Parallax Setting | 20 to infinity | 20 to infinity |
| Length | 16.1 inches | 16.1 inches |
| Weight | 29.7 oz | 29.7 oz |
| OPTICAL FEATURES |
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| HD Lens Elements | Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images. |
| XR Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| |
| CONSTRUCTION FEATURES |
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof |
