HAVING YOUR TARGET IN SIGHT
The impressive features of the 1-inch range with a 3x zoom include not only its tried-and-true optical system, but also the slim, lightweight design suitable for any hunting firearm.
SLIM YET NIG ON DETAIL
High-light gathering 50-mm objective lens - 12x magnification for more detail - Slim and rugged

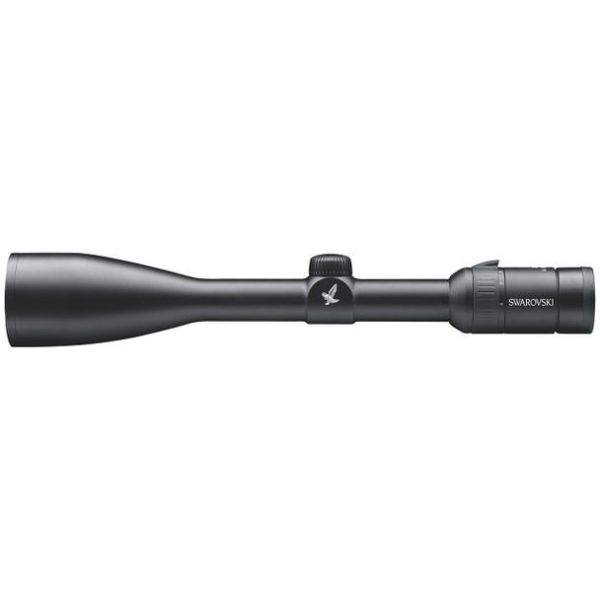

Even in the 1-inch class you dont need to go without backup lighting and higher magnification. The Z3 4-12x50 L is designed to cope with these values even with an incredibly lightweight design.
SKU | I-20271 | I-20270 | I-20269 | I-20268 |
MPN | 59027 | 59026 | 59023 | 59021 |
Mount-Type | Ring-Mount | Ring-Mount | Ring-Mount | Ring-Mount |
Reticle | BRX | BRH | 4A | PLEX |
OBJECTIVE |
Magnification | 4-12x |
Effective Objective Lens Diameter | 50 mm |
Exit Pupil Diameter | 12.5-4.2 mm |
Exit Pupil Distance | 90 mm |
Field of View at 100 Yds/ 100 m | 29.1-9.9 ft/100 yds |
Field of View Degrees | 5.5-1.9 |
Field of View Apparent | 22.7 |
Diopter Adjustment | -2.5 to +2.5 dpt |
Light Transmission | 90 % |
Twilight Factor Acc. to Iso 14132-1 | 10.6-24.5 |
| |
MEASUREMENT |
Impact Point Correction Per Click | 0.25 / 7 |
Max. Elevation / Windage Adjustment Range | 43 / 1.2 |
| |
DIGITAL |
Objective Filter Thread | M 52x0.75 |
| |
SIZE & WEIGHT |
Length | 13.78 in |
Weight | 14.5 oz |
Central Tube Diameter | 1 in |
| |
ENVIRONMENT & CONDITIONS |
Functional Temperature | -4 to +131 F |
Storage Temperature | -22 to +158 F |
Submersion Tightness | 13 ft / 4 m water depth (inert gas filling) |
