HAVING YOUR TARGET IN SIGHT
The impressive features of the 1-inch range with a 3x zoom include not only its tried-and-true optical system, but also the slim, lightweight design suitable for any hunting firearm.
THE TRADITIONAL
For traditional hunting firearms - Excellent optics - Small and lightweight

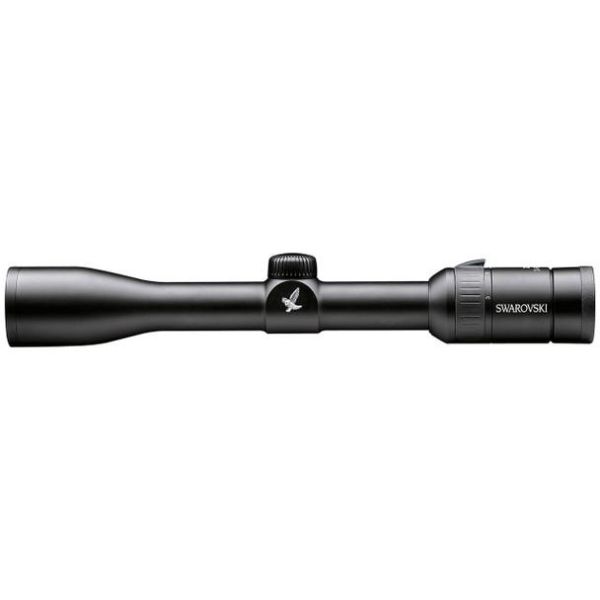

The Z3 3-9x36 is a 1-inch rifle scope for any hunter who appreciates a small rifle scope with tried-and-tested optics. It is particularly suitable for traditional hunting firearms.
SKU | I-20263 | I-20262 |
MPN | 59033 | 59031 |
Mount-Type | Ring-Mount | Ring-Mount |
Reticle | 4A | PLEX |
OBJECTIVE |
Magnification | 3-9x |
Effective Objective Lens Diameter | 36 mm |
Exit Pupil Diameter | 12-4 mm |
Exit Pupil Distance | 90 mm |
Field of View at 100 Yds/ 100 m | 39-13.5 ft/100 yds |
Field of View Degrees | 7.4-2.6 |
Field of View Apparent | 22.7 |
Diopter Adjustment | -2.5 to +2.5 dpt |
Light Transmission | 90 % |
Twilight Factor Acc. to Iso 14132-1 | 7.9-18 |
| |
MEASUREMENT |
Impact Point Correction Per Click | 0.25 / 7 |
Max. Elevation / Windage Adjustment Range | 58 / 1.6 |
| |
DIGITAL |
Objective Filter Thread | M 39x0.75 |
| |
SIZE & WEIGHT |
Length | 12.13 in |
Weight | 12 oz |
Central Tube Diameter | 1 in |
| |
ENVIRONMENT & CONDITIONS |
Functional Temperature | -4 to +131 F |
Storage Temperature | -22 to +158 F |
Submersion Tightness | 13 ft / 4 m water depth (inert gas filling) |
