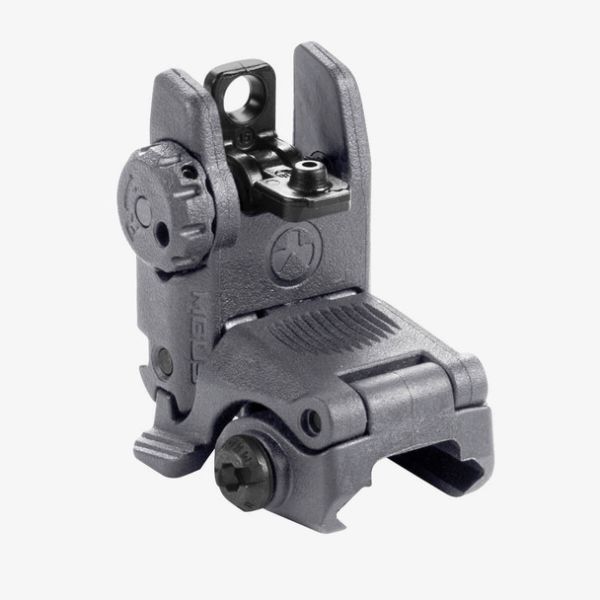

Magpul MBUS Sight - Rear, Stealth Gray

Availability: In stock
Only 4 left
SKU
HU04404

Description

The MBUS (Magpul Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15 / M16 platform.

Made in the USA.

  • SPRING-LOADED FLIP UP SIGHT
    • Spring-loaded flip up sight easily activated from either side or by pressing the top
    • Protective wings shield the dual, same plane flip apertures
    • Sight can still be folded with either large or small aperture in position
    • Detent knob easily and positively adjusts windage

  • IMPACT-RESISTANT POLYMER CONSTRUCTION
    • Polymer construction provides light weight and resists operational abuse

  • DETENT AND SPRING PRESSURE KEEPS SIGHT ERECT
    • Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.

  • CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS
    • Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons

Technical Specifications
PositionRear
Height above rail, stowed~0.51 in.
Length, deployed1.5 in.
Length, stowed2.6 in.
Weight, w/ hardware1.3 oz.
Other SpecsCenter of aperture to top of rail: 1.42 in.
WINDAGE ADJUSTMENT
~0.7 MOA (0.754"/100m) per click with a 14.5" sight radius
~0.5 MOA (0.547"/100m) per click with a 20" sight radius
